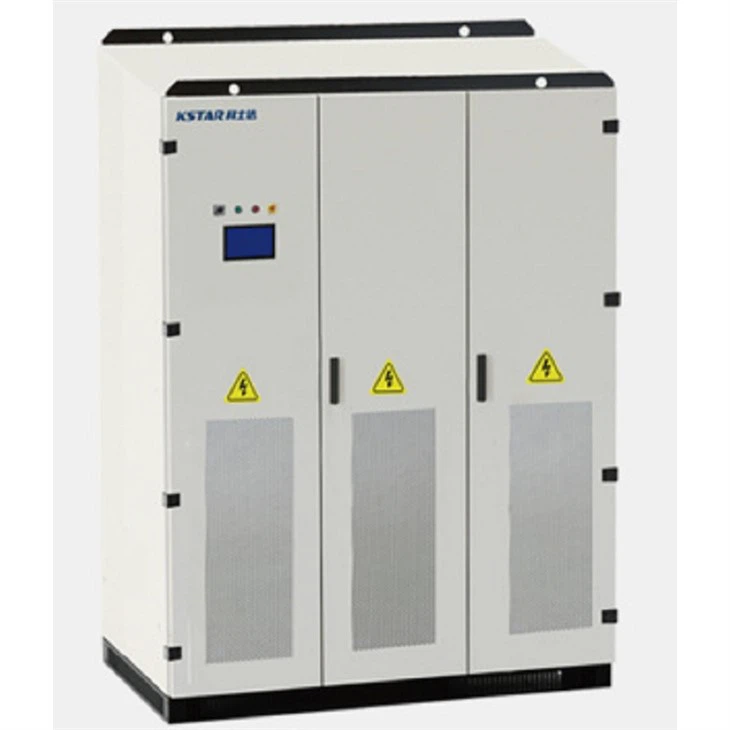

Description
- Max. PV voltage up to 1500V
- Max. 12 DC inputs
- Dustproof protection
- Modular design for Easy maintenance
- Max. DC/AC ratio up to 1.5
- Full power output under 55℃
- AGC/AVC,LVRT/HVRT/FRT function
- SVG function at night
| Model | GSM1250 | GSM1500 |
| Input(DC) | ||
| Max. DC voltage | 1500Vdc | |
| MPPT voltage range | 800~1300Vdc | 900~1300Vdc |
| Max. DC input number | 10 | 12 |
| Max. input current | 1750A 1870A | |
| Output(AC) | ||
| Rated output power | 1250KW | 1500KW |
| Rated output voltage | 550Vac | 600Vac |
| Output voltage range | (1±10%)×Rated AC Voltage (adjustable ±5%,±10%,±15%) | |
| Grid frequency range | 50 / 60Hz（±4.5Hz）（adjustable） | |
| Rated AC output current | 1312A | 1443A |
| Max. AC output current | 1443A | 1443A |
| Power factor (cosФ) | 1 ( 0.9 leading – 0.9 lagging) (adjustable) | |
| THDI | ＜3% | |
| Efficiency | ||
| Max. efficiency | 99.0% | |
| Euro efficiency | 98.7% | |
| MPPT efficiency | ＞99% | |
| Standby（night time）losses | ＜50W | |
| Cooling type | Forced air cooling | |
| Communication interface | RS485, external Ethernet (optional) | |
